1/10 Scale Gas Powered 4WD Touring Car

Click here for Additional Features

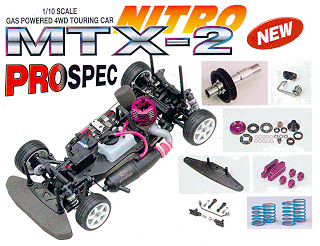

1/10 GP Touring Car MTX-2

<Technical Data>

+ Length ------------------380 mm

+ Width -------------------198 mm

+ Wheel Base ----------260 mm

+ Tread (F/R) --172mm / 172mm

+ F. Caster Angle ------6.2°〜14°

+ Gear Ratio ------1st 7.421:1 /
          2nd 5.717:1

+ Weight -----------N/A

1/10 Scale GP 4WD Touring Car

MTX-2
Powered with Nova/Mugen MT12

                    - Chassis Kit

- Chassis/MT12 Engine Kit

- Chassis Kit for O.S.CV Hyper Engine

                  *MT12 Engine is the first rear exhaust
                  engine in 12 class which developed between
                  Novarossi/Mugen Seiki.

MTX-2 is inherited the blood of
1/8, 1/10 pure racer.
The fastest 1/10 scale GP Touring Car!











<Features>

+ Belt Drive 4WD

+ Cam Type 2-Speed Gear
  Housing

+ 3 PC Clutch

+ Disk Blake

+ Turn Buckle Steering Rod

+ 3 mm (A70-75) Chassis

+ Front Urethane Bumper

+ 75cc Fuel Tank
  Filter-equipped

+ Resin Radio Plate

+ Manifold for MT12 Engine

+ Adjustable Front Bump
 Stop/Rebound Stop

+ Adjustable Rear Bump
 Stop/Rebound Stop

+ Adjustable the angle of
  Front/Rear Damper

+ Adjustable Camber/Toe/
  Caster angle(only Front)

+ Full-Bearing

+ Air Filter


*This kit is not contained the Muffler/Body/Tire and Wheels.

MTX-2 PRO SPEC.

+ Front One-Way Drive Shaft
+ Clutch Set
+ Al. Engine Mount
+ Al. Wheel Hub
+ Wheel Hub Spacer
+ F/R Anti-Roll Bar
+ F/R Damper Spring
+ Wide Bumper
+ Belt Tensioner w/Flange Bearing

+ Chassis kit
+ Chassis kit/MT12 Engine Kit



<MTX-2 Option Parts>
T0116 Anti-Roll Bar Link Parts T0704 Engine Nut (For O.S.)
T0117 Rear Anti-Roll Bar 2.0mm C0753 Clutch Spring 1.1mm
T0120 Al. Rear Brace T0405 Front Wide Bumper
T0121 Al. Wheel Hub K0603/1 Bearing Set 10x15x4
T0123/1 Front Anti-Roll Bar Set K1123 Inner Foam (4pcs.)
T0211 F/R Universal Joint K1124 Inner Foam Hard (4pcs.)
T0216 Front One-Way Drive Set Damper Spring
T0702 Al. Engine Mount

*Specifications are subject to change without notice.
