E0010 MBX-5 PROSPEC

< Technical Data >

+ Length-----------480mm

+ Width------------308mm

+Height------------182mm

+ Wheel Base-------324 - 329mm

+ Gear Ratio---------11.79:1

+ Weight-------------about 3,400g

  + More Pictures

  + Parts List (PDF)
  + Setting Sheet (PDF)
  + Instruction Manual (PDF)
  Standard
(9.79MB) Prospec (4.29MB)

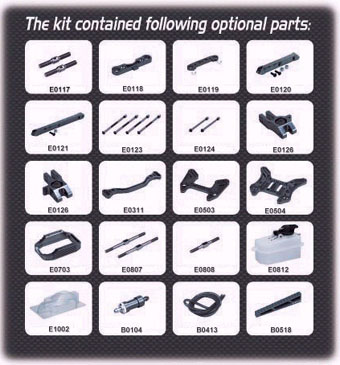

  + The kit contained following optional parts:












< Features >

+ 3 Diff. Shaft Drive 4WD

+ Universal Joint (Front/Center/Rear)

+ H.D. Damper w/3.5mm Damper Shaft

+ A70-75(T6) 3mm Main Chassis

+ Receiver & Receiver Battery Box

+ 3PC Al. Clutch Shoe

+ Carbon Radio Plate

+ Carbon Center Diff. Mount Plate

+ Carbon Steering Brace

+ 2PC Center Diff. Mount

+ Optional Parts

+ Carrying Bag (Gray)

+ E0106 Front Upper Arm Attached 2mm backward.

+ E0107 Front Lower Arm Attached 2mm forward.
*  The caster angle can be adjusted max.32 degree.

+ E0125 Rear Lower Arm Mount
   Toe-angle: 2.5, 2.75, 3.0, 3.25
   (+1 degree kick-up)
   Toe-angle: 2.25, 2.75
   (same kick-up of MBX5)

+ E0811 Rear Upper Arm Link
   Modified for E0126.

Other necessary equipment

.

2ch Propo and 2 servo/Receiver Battery (2+3)/21 Class Rear Exhaust Engine (only chassis kit)/
Muffler/Manifold/Manifold Spring/Tire w/Wheel&Inner Foam/Engine Starter/Body paint tools/Fuel

.

The contents are subject to change without notice due to product improvements and specification changes.

.
